Duct Free Systems
Duct free heating and cooling systems make your home’s individual rooms or other small spaces more comfortable. Remember, just like whole-home systems, the higher the SEER/SEER2 and HSPF/HSPF2 ratings, the more efficient they will be.
The DOE’s regional breakdown by state is as follows:
- North
- 14.0 SEER/ 13.4 SEER2
- 8.8 HSPF/7.5 HSPF2
- Southeast
- 15.0 SEER/ 14.3 SEER2
- 12.2 EER/11.7 EER2
- 8.8 HSPF/7.5 HSPF2
- Southwest
- 15.0 SEER/ 14.3 SEER2
- 12.2 EER/11.7 EER2
- 8.8 HSPF/7.5 HSPF2
SEER/SEER2 And HSPF/HSPF2
SEER2 is an updated rating standard introduced by the DOE. SEER2 standards are intended to provide a better gauge of typical home operating conditions whereas the older SEER rating utilized very precise protocols to determine ratings in ideal conditions. SEER2 standards include updated testing means that give a better indication of how a unit will operate in the real world.
HSPF2 is the newest type of rating system that expands on the basic HSPF scale.
Much like miles-per-gallon for a car, SEER/SEER2, EER/EER2 and HSPF/HSPF2 offer an easy way to compare efficiencies of different products – the higher the rating, the more efficient the unit. Just be sure you are comparing either SEER vs SEER or SEER2 vs SEER2 (same for EER/EER2 and HSPF/HSPF2).
EER2 vs. SEER2
EER2 and SEER2 both evaluate an air conditioner’s energy efficiency, but they’re concerned with two different types of temperature conditions:
- EER2 measures an air conditioner’s efficiency at the peak cooling temperature of 95°F.
- SEER2 measures an air conditioner’s efficiency throughout an entire cooling season, with temperatures ranging from 65°F to 104°F.
Call Bauer Heating and Cooling To Find Out If Duct-Free Systems Are Right For You.
We offer a variety of through-the-wall packaged terminal air conditioners (PTAC) and duct free heating and cooling systems to meet any individual room’s needs. Call us now at (208) 482-0103.
Ductless High Wall Indoor Heat Pumps
Evolution® Indoor Ductless High Wall Unit
| Model Family: 619PHB |
| Purpose: Heat & Cool |
| Zone Capability: Single Zone and Multizone |
| Efficiency SEER2: Dependent upon outdoor unit pairing |
| Efficiency EER2: Dependent upon outdoor unit pairing |
| Efficiency HSPF2: Dependent upon outdoor unit pairing |
| Matching Outdoor Unit: Single-Zone: 38MARB |
| Matching Outdoor Unit: Multi-Zone: 38MGRB |
| Energy Star Rated: ENERGY STAR® certified |
| Refrigerant Type: Puron® |
| Number of Fan Speeds: Fully modulating fan speeds |
| Sound Level: As low as 29 decibels |
| Wireless Remote: Yes |
| Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration |
| Manufacturer’s Stated Benefits: Up-down / right-left louver control (fixed or swing)Relative Humidity SensorIntelligent Eye (occupancy sensor)Built-in Wi-Fi®ECO ModeAluminum Golden Hydrophilic pre-coated finsModes: Cool, Heat, Dry, Fan, Auto Turbo Mode |
Preferred™ High Wall Indoor Unit
| Model Family: 619AHB |
| Purpose: Heat and Cool |
| Zone Capability: Single zone |
| Efficiency SEER2: Dependent upon outdoor unit pairing |
| Efficiency EER2: Dependent upon outdoor unit pairing |
| Efficiency HSPF2: Dependent upon outdoor unit pairing |
| Matching Outdoor Unit: Single-Zone: 38MARB |
| Matching Outdoor Unit: Multi-Zone: 38MGRB |
| Energy Star Rated: Select systems with ENERGY STAR® certification |
| Refrigerant Type: Puron |
| Number of Fan Speeds: 4 |
| Sound Level: As low as 24 dB(A) |
| Wireless Remote: Yes |
| Factory Warranty Parts: 10-Year Parts Limited Warranty |
| Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Turbo Mode Sleep Mode Intelligent Eye (Occupancy Sensor) Relative Humidity Sensor |
Legacy™ Line High Wall Indoor Unit
| Model Family: 40MHHAQ |
| Purpose: Heat & Cool |
| Zone Capability: Single Zone and Multizone |
| Efficiency SEER2: Dependent upon outdoor unit pairing |
| Efficiency EER2: Dependent upon outdoor unit pairing |
| Efficiency HSPF2: Dependent upon outdoor unit pairing |
| Matching Outdoor Unit: Single-Zone: 38MHRQ |
| Matching Outdoor Unit: Multi-Zone: N/A |
| Energy Star Rated: No |
| Refrigerant Type: R-410A |
| Number of Fan Speeds: Four fan speeds |
| Sound Level: As low as 27 decibels |
| Wireless Remote: Yes |
| Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration |
| Manufacturer’s Stated Benefits: Auto-restart functionTurbo ModeSleep ModeFollow Me (senses temperature at handheld remote)Up-down louver control (fixed or swing)Filter is removable from the topImproved serviceability with easy access to fan and electrical connectionsAluminum Blue Hydrophilic pre-coated fins |
Ductless High Wall Indoor Air Conditioners
Legacy Line™ Indoor Ductless High Wall Cooling-Only Unit
| Model Family: 40MHHAC |
| Purpose: Cool Only |
| Zone Capability: Single Zone |
| Efficiency SEER2: Dependent upon outdoor unit pairing |
| Efficiency EER2: Dependent upon outdoor unit pairing |
| Matching Outdoor Unit: Single-Zone: 38MHRCC |
| Matching Outdoor Unit: Multi-Zone: N/A |
| Energy Star Rated: No |
| Refrigerant Type: Puron® |
| Number of Fan Speeds: Up to 4 Fan Speeds |
| Sound Level: As low as 27 decibels |
| Wireless Remote: Yes |
| Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration |
| Manufacturer’s Stated Benefits: Auto-restart function Turbo Mode Sleep Mode Up-down louver control (fixed or swing) Filter is removable from the top Improved serviceability with easy access to fan and electrical connections Aluminum Blue Hydrophilic pre-coated fins Attractively styled, high−impact polystyrene. |
Bryant Alternate Indoor Ductless Units
Preferred™ Cassette Indoor Unit
| Model Family: 40MBCQ |
| Purpose: Heat & Cool |
| Zone Capability: Single and Multi Zone |
| Efficiency SEER2: Dependent upon outdoor unit pairing |
| Efficiency EER2: Dependent upon outdoor unit pairing |
| Efficiency HSPF2: Dependent upon outdoor unit pairing |
| Matching Outdoor Unit: Single-Zone: 38MARB |
| Matching Outdoor Unit: Multi-Zone: 38MGRB |
| Energy Star Rated: N/A |
| Refrigerant Type: PURON ® |
| Number of Fan Speeds: Three fan speeds |
| Sound Level: As low as 34 decibels |
| Wireless Remote: Yes |
| Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration |
| Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Vertical or horizontal installation Auto-restart function Louver control (fixed or swing) Built-in condensate lift pump Aluminum Blue Hydrophilic pre-coated fins Unit cabinet is constructed of galvanized steel. The cabinet is fully insulated for improved thermal and acoustic performance. |
Preferred™ Ducted Indoor Unit
| Model Family: 40MBDQ |
| Purpose: Heat & Cool |
| Zone Capability: Single and Multi Zone |
| Efficiency SEER2: Dependent upon outdoor unit pairing |
| Efficiency EER2: Dependent upon outdoor unit pairing |
| Efficiency HSPF2: Dependent upon outdoor unit pairing |
| Matching Outdoor Unit: Single-Zone: 38MAR |
| Matching Outdoor Unit: Multi-Zone: 38MGRB |
| Energy Star Rated: ENERGY STAR® Some sizes qualified |
| Refrigerant Type: Puron® |
| Number of Fan Speeds: N/A |
| Sound Level: As low as 35 decibels |
| Wireless Remote: Yes |
| Factory Warranty Parts: 10-year parts limited warranty to the original purchasing owner upon timely registration |
| Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Vertical or horizontal installation Up to 0.64 in WG Rear or bottom return Outside air intake Built-in condensate lift pump Aluminum Blue Hydrophilic pre-coated fins Unit cabinet is constructed of galvanized steel. The cabinet is fully insulated for improved thermal and acoustic performance. |

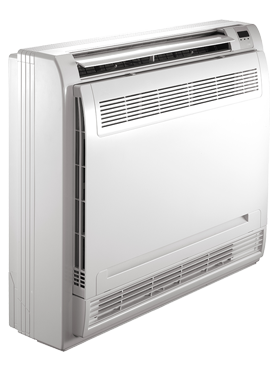

Preferred™ Floor Console Indoor Unit
| Model Family: 40MBFQ |
| Purpose: Heat & Cool |
| Zone Capability: Single and Multi Zone |
| Efficiency SEER2: Dependent upon outdoor unit pairing |
| Efficiency EER2: Dependent upon outdoor unit pairing |
| Efficiency HSPF2: Dependent upon outdoor unit pairing |
| Matching Outdoor Unit: Single-Zone: 38MARB |
| Matching Outdoor Unit: Multi-Zone: 38MGRB |
| Energy Star Rated: ENERGY STAR® |
| Refrigerant Type: Puron® |
| Number of Fan Speeds: Three fan speeds |
| Sound Level: As low as 37.8 decibels |
| Wireless Remote: Yes |
| Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration |
| Manufacturer’s Stated Benefits: Modes: Cool, Heat, Dry, Fan, Auto Up to 0.4 in WG Auto-restart function Louver control (fixed or swing) Aluminum Blue Hydrophilic pre-coated fins Unit cabinet is constructed of galvanized steel. The cabinet is fully insulated for improved thermal and acoustic performance. |
